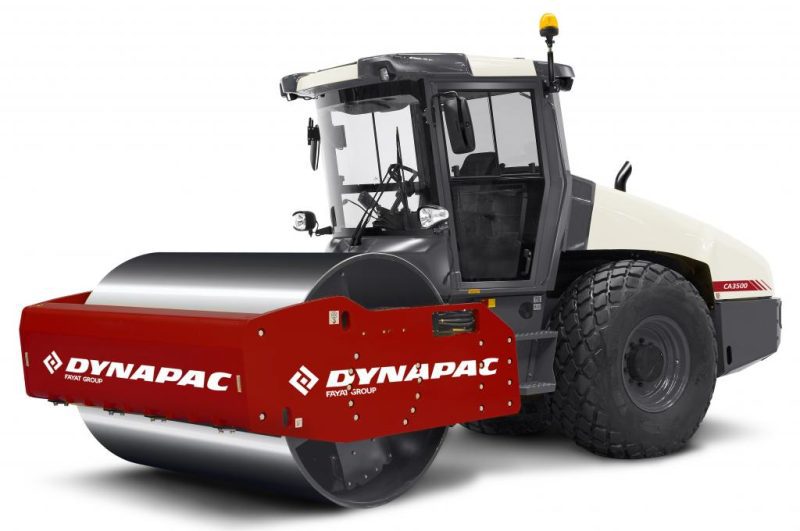

Dynapac CA2500D

Noleggio rullo Vibrante mono tamburo Dynapac CA 2500 D ferro gomma in Provincia di Varese Milano Como

Il rullo compattatore della Dynapac offre prestazioni che che ti consentono di lavorare in piena serenità e nel modo più efficiente possibile.

Masses
Operating mass (incl. ROPS) 10,100 kg
Operating mass (incl. Cab) 10,300 kg
Module mass (front/rear)
Module mass (front, std/rear) 5,600/4,700 kg
Max. operating mass 11,900 kg
Traction
Speed range 0 – 12 km/h
Tyre size (8 ply) 23,1 x 26 AW
Theor. gradeability 51 %
Vertical oscillation ±9°
Compaction
Static linear load 26 kg/cm
Nominal amplitude (high/low) 1.8 mm/ 0.9 mm
Vibration frequency (high/low amplitude) 33 Hz/ 34 Hz
Centrifugal force (high/low amplitude) 250 kN/ 130 kN
Engine
Manufacturer/Model Cummins QSF3.8 (IV/4final)
Type Water cooled turbo Diesel
Rated power, SAE J1995 89 kW (120 hp) @ 2,200 rpm
Fuel tank capacity 272 l
DEF tank capacity 20 l
Alternative Engine 1
Manufacturer/Model
Type Water cooled turbo Diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2,200 rpm
Alternative Engine 2
Manufacturer/Model Cummins QSB4.5 (IIIA/3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 97 kW (130 hp ) @ 2,200 rpm
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake
Failsafe multidisc brake in drum gear box and in rear axle.



A. Wheelbase 2,990 mm
B1. Width, front 2,300 mm
B2. Width, rear 2,130 mm
D. Drum diameter 1,500 mm
H. Height, with ROPS/cab 2,870 mm
K1. Ground clearance 450 mm
K2. Curb clearance 450 mm
L. Length 5,990 mm
O1. Overhang, right 105 mm
O2. Overhang, left 105 mm
R1. Turning radius, outside 5,450 mm
R2. Turning radius, inside 3,300 mm
S. Drum shell thickness 25 mm
W. Drum width 2,130 mm
α. Steering angle ±38°
